10 GigE 面阵相机HT 系列

所属分类：Emergent
浏览次数： 291 次
发布时间：2023-10-24 14:42:07
资料下载：

我要询价

详细介绍

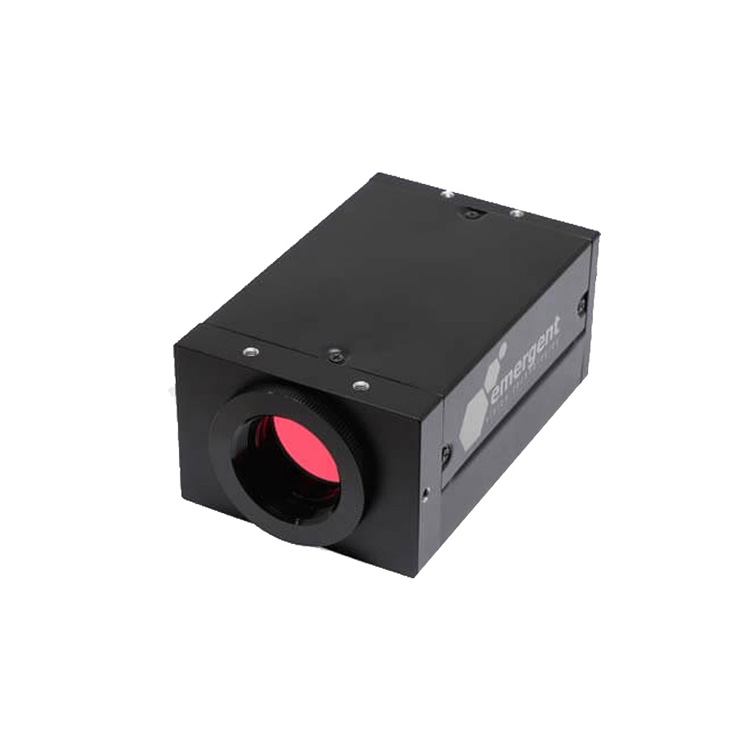

产品型号：10 GigE 面阵相机HT 系列

主要参数：0.5- 50MP，最高可到1586 fps，10GBaseT – RJ45接口

资料下载：暂无数据

产品详细说明：

型号	传感器	分辨率	传感器类型	FPS	像素μm
HT-500-S	Sony IMX426	812 x 620	1/1.7-9.2mm CMOS	1586fps@8-bit; 900fps@12-bit	9
HT-1800-S	Sony IMX425	1604 x 1100	1.1”-17.6mm CMOS	660fps@8-bit; 460fps@12-bit	9
HT-2000	AMS CMV2000	2048 x 1088	2/3"CMOS	338 fps	5.5
HT-2000-S	Sony IMX422	1624 x 1240	1/1.7-9.2mm CMOS	485fps@8-bit; 270fps@12-bit	4.5
HT-2800-S	Sony IMX421	1936 x 1464	2/3”-11.0mm CMOS	410fps@8-bit; 228fps@12-bit	4.5
HT-3000-S	Sony IMX252LLR/ Sony IMX252LQR	2048 x 1536	1/1.8”CMOS	216fps	3.45
HT-4000	AMS CMV4000	2048 x 2048	1"CMOS	179 fps	5.5
HT-5000-S	Sony IMX250LLR/ Sony IMX250LQR/ Sony IMX250MYR/ Sony IMX250MZR	2448 x 2048	2/3"CMOS	163fps	3.45
HT-5000-SB	Sony S IMX537	2448 x 2048	1/1.8”CMOS	240fps@8-bit; 160fps@12-bit	2.74
HT-5000-SBL	Sony S IMX547	2448 x 2048	1/1.8”CMOS	99fps@8-bit; 72fps@12-bit	2.74
HT-7000-S	Sony IMX420	3208 x 2200	1.1”-17.6mm CMOS	170fps@8-bit; 110fps@12-bit	4.45
HT-8000-S	Sony IMX255LLR/ Sony IMX255LQR	4096 x 2160	1”CMOS	110fps	3.45
HT-8000-SB	Sony S IMX536	2840 x 2840	2/3”CMOS	145fps@8-bit; 100fps@12-bit	2.74
HT-8000-SBL	Sony S IMX546	2840 x 2840	2/3”CMOS	73fps@8-bit; 53fps@12-bit	2.74
HT-12000	AMS CMV12000	4096 x 3072	28mmCMOS	84fps	5.5
HT-12000-S	Sony IMX253LLR/ Sony IMX253LQR/ Sony IMX253MYR/ Sony IMX253MZR	4096 x 3000	1.1"CMOS	80fps	3.45
HT-12000-SB	Sony S IMX535	4096 x 3000	1/1.1"CMOS	100fps@8-bit; 65fps@12-bit	2.74
HT-12000-SBL	Sony S IMX545	4096 x 3000	1/1.1"CMOS	68fps@8-bit; 46fps@12-bit	2.74
HT-16000-SB	Sony S IMX532	5320 x 3032	1.1CMOS	77fps@8-bit; 50fps@12-bit	2.74
HT-16000-SBL	Sony S IMX542	5320 x 3032	1.1CMOS	52fps@8-bit; 36fps@12-bit	2.74
HT-17000-S	Sony IMX387	5456 x 3076	Four Thirds (16:9)CMOS	61fps@8-bit; 40fps@12-bit	3.45
HT-20000	AMS CMV20000	5120 x 3840	35MM	32fps	6.4
HT-20000-S	Sony IMX367	4416 x 4428	Four Thirds (1:1)CMOS	43fps@8-bit; 28fps@12-bit	3.45
HT-20000-SB	Sony S IMX531	4504 x 4504	1.1CMOS	61fps@8-bit; 40fps@12-bit	2.74
HT-20000-SBL	Sony S IMX541	4504 x 4504	1.1CMOS	43fps@8-bit; 29fps@12-bit	2.74
HT-25000-SB	Sony S IMX530	5320 x 4600	1.2CMOS	51fps@8-bit; 33fps@12-bit	2.74
HT-25000-SBL	Sony S IMX540	5320 x 4600	1.2CMOS	35fps@8-bit; 24fps@12-bit	2.74
HT-30000-S	Sony IMX342	6464 x 4852	APS-C(4:3) CMOS	35fps@8-bit; 25fps@12-bit	3.45
HT-50000	AMS CMV50000	7920 x 6004	35mmCMOS	23fps	4.6
